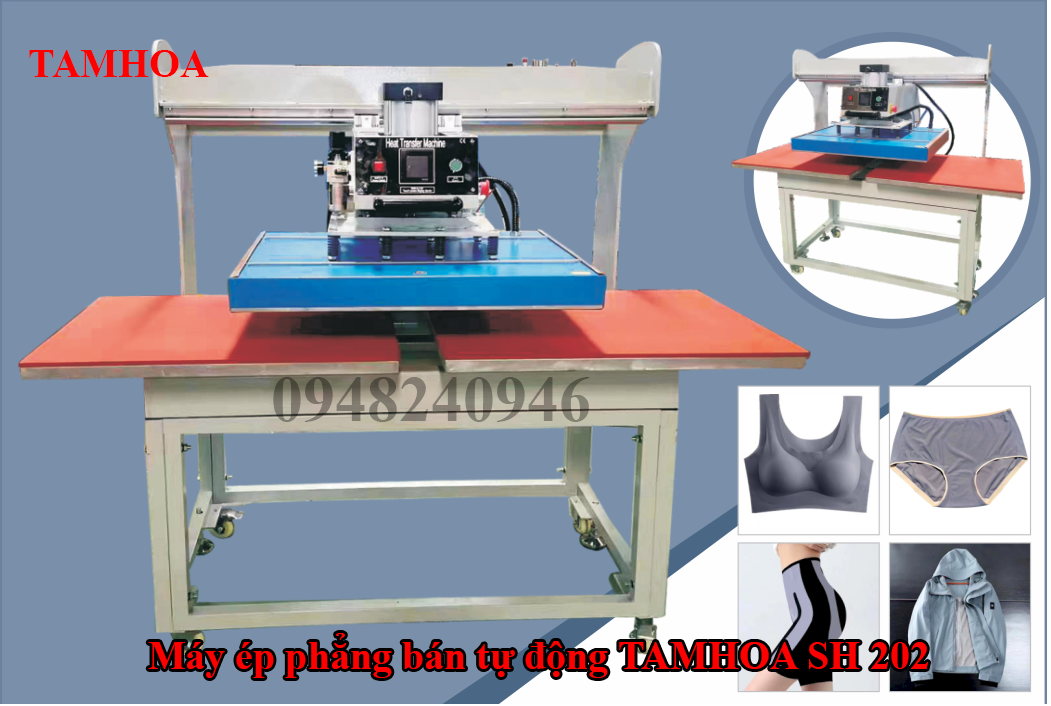

TAMHOA SH 202 pneumatic flat press
Contact
Product Code:
TAMHOA SH 202
Product Description:
- Suitable for heat pressing to shape the surface of seamless men’s and women’s underwear after completing the glue point and glue.
- Suitable for heat pressing to shape cuffs, hems of T-shirts, shirts
- Suitable for heat pressing to shape collars, polo shirts, after gluing is completed
- Suitable for heat pressing to shape all kinds of garments when finishing gluing, gluing, and applying glue.
- Suitable for garments with heat-printed images, labels, and patterns
- Suitable for all types of materials produced by surface gluing technology
Product Description
TAMHOA SH 202 pneumatic flat press
Application range
- Suitable for heat pressing to shape the surface of seamless men’s and women’s underwear after completing the glue point and glue.
- Suitable for heat pressing to shape cuffs, hems of T-shirts, shirts
- Suitable for heat pressing to shape collars, polo shirts, after gluing is completed
- Suitable for heat pressing to shape all kinds of garments when finishing gluing, gluing, and applying glue.
- Suitable for garments with heat-printed images, labels, and patterns
- Suitable for all types of materials produced by surface gluing technology
Equipment advantages
- Intelligent temperature control system, accurate temperature, simple operation, heat-pressed products are more solid
- There are 2 heat press plates with heat-insulating rubber surface, the product is not deformed, can order heat-insulating rubber plates suitable for production technology.
- Press plate size 60*80cm, suitable for most products, other sizes can be contacted by the company to order.
- There are 2 types of production to choose from: automatic and manual, making operation more flexible.
- Large pneumatic tube, high pressure, thin material can also be easily pressed firmly
Machine specifications
| Tray speed | 0-7cm/s |
| Temperature | 0- 300 C |
| basic weight of machine | 72kg |
| Total weight of the machine | 124kg |
| Pneumatic | 0.5Mp |
| Source | 220V-240VAC/110VAC/50hz/60Hz |
| Rim Thickness | 12/20/25/30mm optional |
| Wattage | 1200w |
| Compressor plate size | 1210x560x1210 |
